Set your organization on the road to energy efficiency with the
SEMS “SunPower™ Energy Monitoring System”.
The last place that most organizations look is their utility
costs because they believe that these are part of the fixed overhead
costs. The smart organization will look at reducing utility costs as a
way to improve the bottom line. But where to begin? Develop an energy
monitoring system.
Energy monitoring systems help global organizations and institutions
save money on energy costs. Implementing them has brought energy savings
averaging 15 percent to a diverse group of organizations in the
industrial, commercial and institutional sectors.
For SunPower™ Energy Monitoring System Demonstration >> Click Here <<
Product Name:
SEMS - SunPower™ Energy Monitoring
System
Product
Electricity Energy Monitoring System
Category
General Industrial Equipment > > Energy
Monitoring System
Description
Electricity all parameter Monitoring System
with 1Hertz data logger power measuring instruments for factory power
supply maintenance and to improve energy-saving efficiency.
Measurement line type
Single-phase 2-wire, single-phase 3-wire,
three-phase 3-wire and three-phase 4 wire systems (50/60 Hz).
Systems that can be measured
Single-phase: 1P2W systems Three-phase: 3P3W (measures the
voltage and current for three lines) 1 system
3P4W (measures the voltage for three lines and the current for four
lines) 1 system
Measurement item
Voltage, current, active power, reactive
power, apparent power, power factor, integrated value, frequency,
harmonics.
Voltage range
Voltage: 150 V to 600 V, 3
ranges.
Basic accuracy
±0.5% rdg. ±0.1% f.s. + clamp-on sensor
accuracy (active power, at 45 to 66 Hz).
Frequency
Fundamental waveforms up to 45- to 66-Hz
fundamental waveform.
Other functions
* RS-232C (Printer or PC connected to an
RS-232C interface)
* External I/O
Display
Update rate approximately every 1 second (1
Hertz).
Supply Voltage
100 to 240 V AC, 50/60 Hz.
Hardware Requirements:
Power meter
Computer
Converter
Power meter
Display Panel:

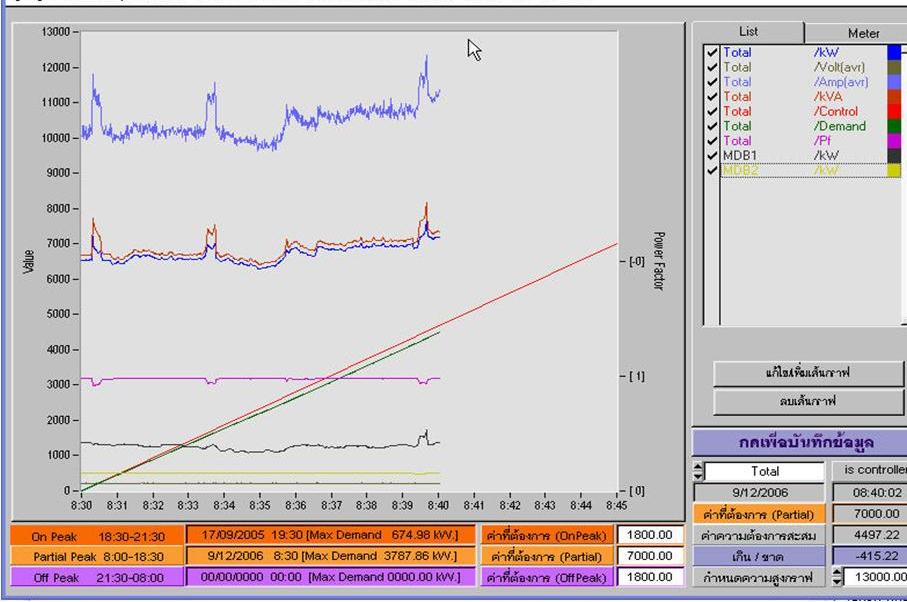

Main panel showing every parameter

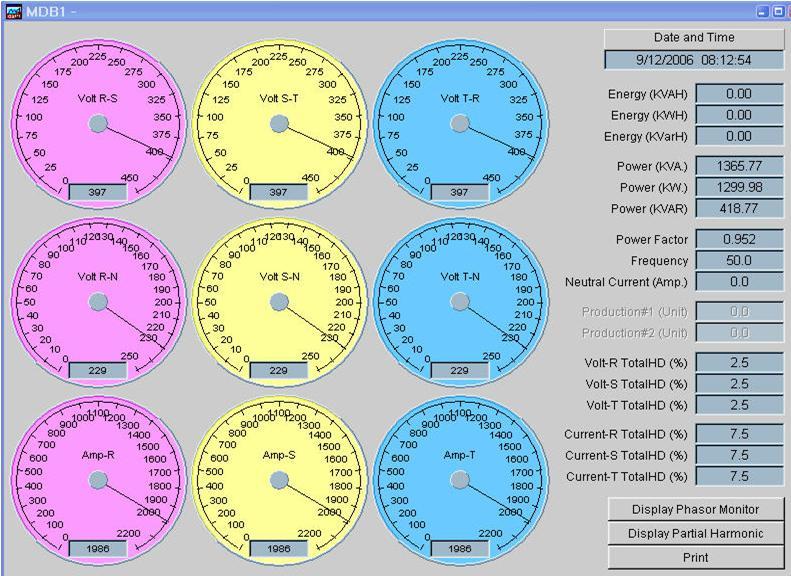

Analog panel V, Am KW
Power factor panel

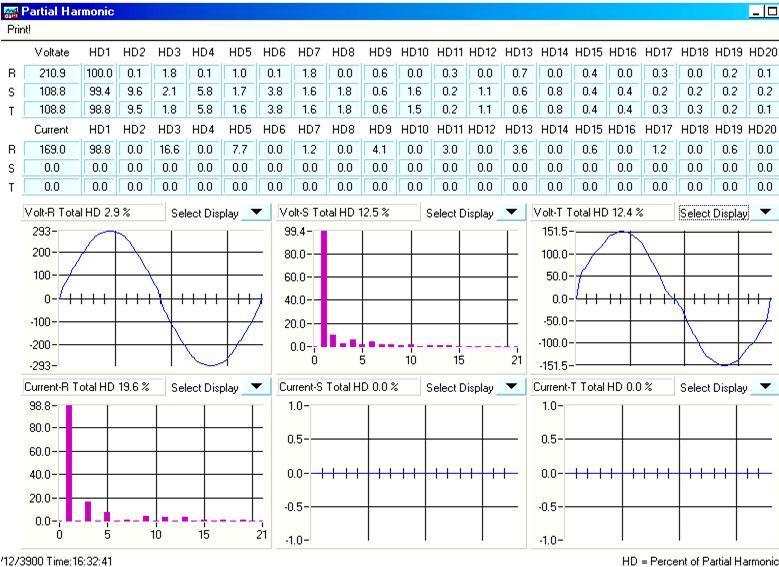

Wave form & Harmonics panel
Report Panel:

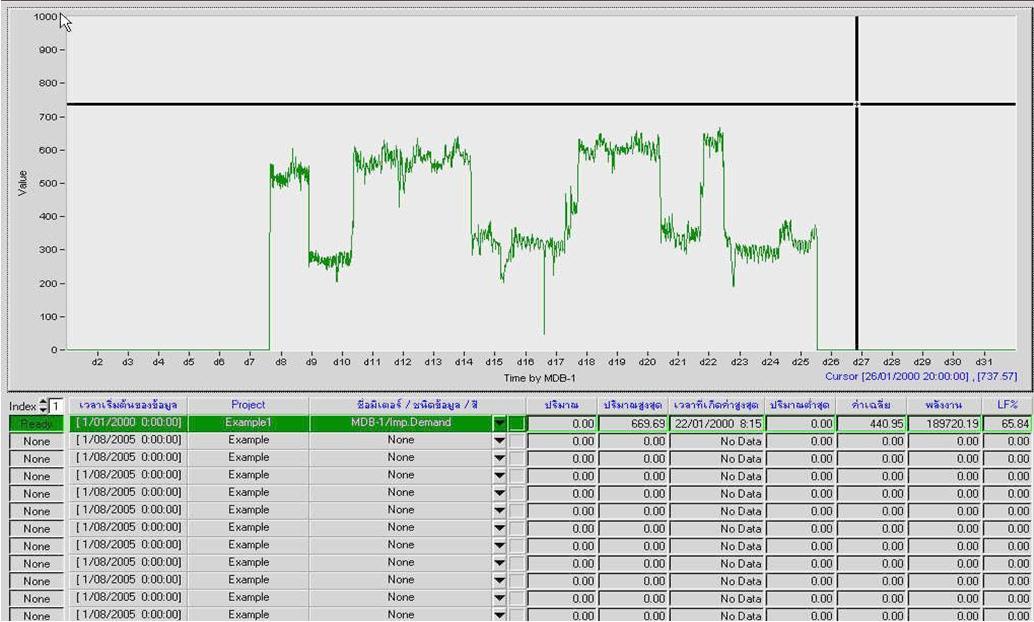

Monthly energy report
Monthly all parameter report

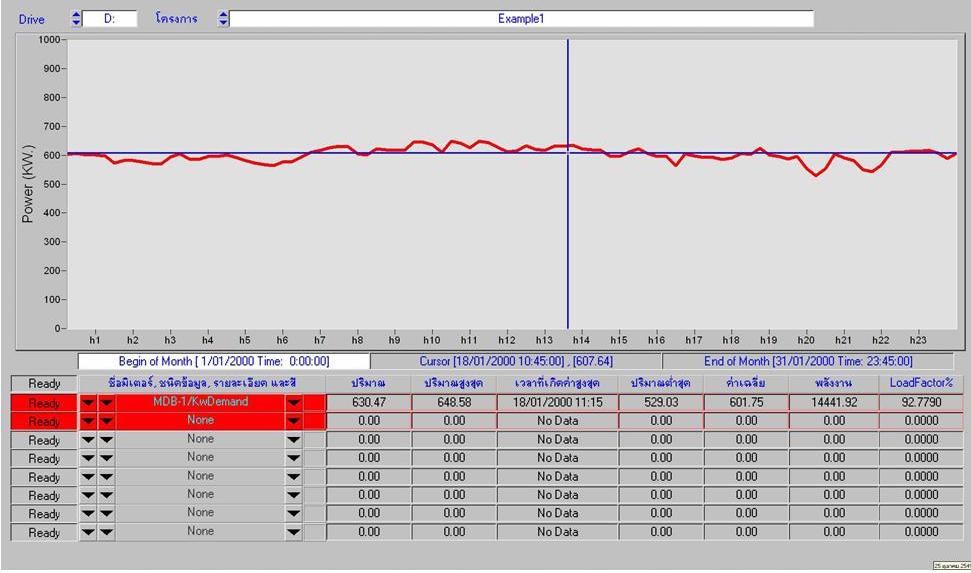

Daily energy report
Export data report
Setting Panel:
Parameter data
Meter & port setting
